To Order
Fits For:
Subaru WRX STI VAB
Subaru WRX S4 VBH
Subaru WRX S4 VAG
Subaru Forester SK5
Subaru Forester SL5
Subaru Forester SK9
Subaru Forester SJ
Subaru BRZ ZC6
Subaru BRZ ZD8
Subaru Levorg VN5
Subaru Levorg VNH
Subaru Levorg VM
Subaru Layback VN5-LB
Subaru Outback BT5
Subaru XV GT
Subaru Impreza GK
Subaru Impreza GJ
Subaru Impreza GR
Subaru Impreza GD

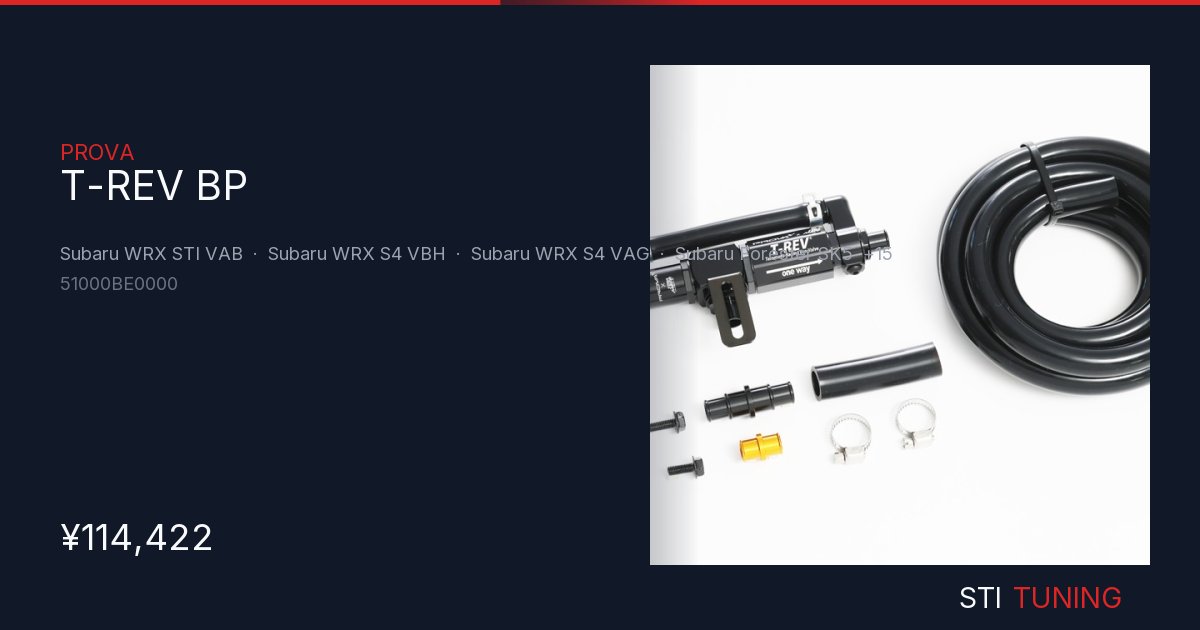

T-REV BP — Subaru WRX STI VAB, Subaru WRX S4 VBH, Subaru WRX S4 VAG
SKU: 51000BE0000
To Order
¥114,422
This item is shipped from Japan on order. Delivery takes 2 to 4 weeks. Shipping cost is calculated separately.
The price shown is for the product only. Our manager will inform you of the shipping cost after placing your order.
Category:
Engine Parts
Description
A valve system that reduces crankcase internal pressure and lowers engine resistance. Universal for VB/VN, BT5, SK5, VAG/VMG/VM4, SJG, BMG/BRG series.
By adopting a special reed valve structure, this crankcase internal pressure control valve system suppresses crankcase pressure rise and maintains a slight negative pressure state. Typically, in reciprocating internal combustion engines, crankcase pressure increases due to piston reciprocation and rising engine temperature, creating a slight positive pressure state (approx. 1-3 kPa) which exists as part of the engine's internal losses, contributing to engine resistance.
The T-REV BP system, based on a reed valve format with excellent responsiveness to continuous pressure fluctuations, employs a special one-way valve. It handles rapidly repeating pressure fluctuations, enabling appropriate and precise pressure control. It is set to maintain a slight negative pressure state during operation (approx. -5 to -10 kPa at idle). This achieves overall improvement in engine response and drivability, as well as reduced resistance.
*Product for universal gasoline engines.
*Blow-by gas expelled is recirculated to the intake path.
*T-REV, T-REVαSYSTEM are registered trademarks of Teramoto Automobile Trading Co., Ltd. This product is sold with the cooperation of Teramoto Automobile Trading Co., Ltd.
*There is no blow-by gas discharge from the air filter section.
*This is a universal setting product; installation should be performed according to the specific engine condition.
*Regular cleaning of oil deposits in the passage sections is recommended.
*Installation images are for illustrative purposes and may differ from the actual product.
TERAMOTO Installation guide *T-REV BP
