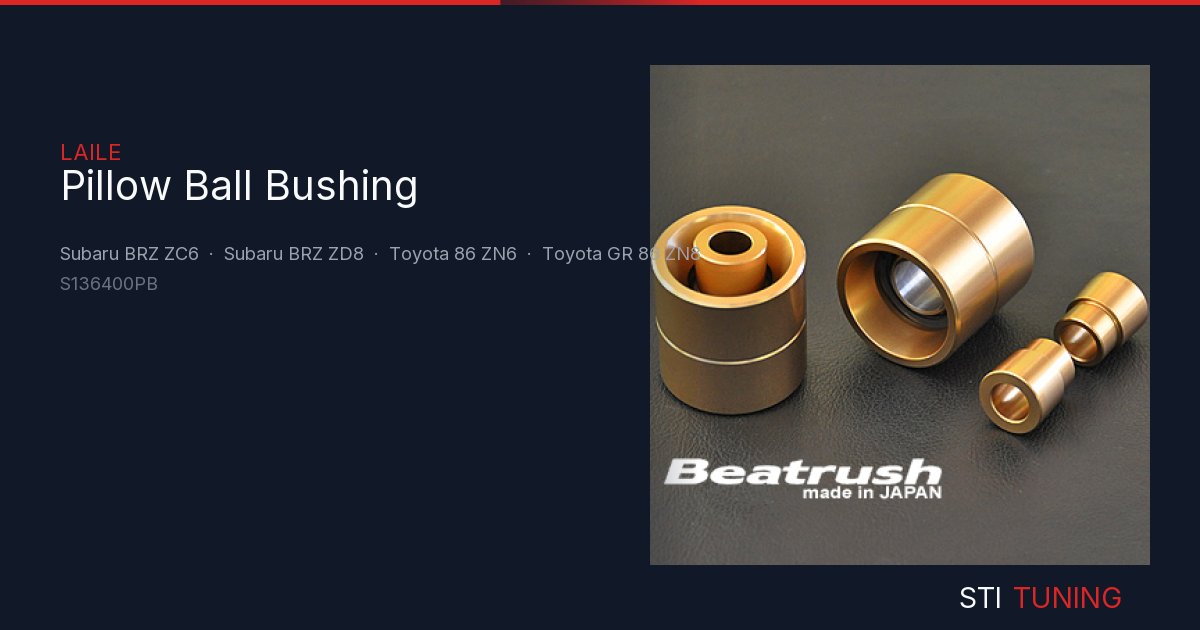

Pillow Ball Bushing — Subaru BRZ ZC6, Subaru BRZ ZD8, Toyota 86 ZN6
SKU: S136400PB
To Order
Price on request
This item is shipped from Japan on order. Delivery takes 2 to 4 weeks. Shipping cost is calculated separately.
The price shown is for the product only. Our manager will inform you of the shipping cost after placing your order.
Specifications
Body: Duralumin (A2017) or machined chromoly material
Pillow ball: Minebea spherical bearing
Pillow nut / Pillow collar: Steel
Category:
Suspension
Description
With rubber bushings, when force is applied to the bushing, twisting and deflection occur, causing alignment changes. By changing to pillow ball bushings, unnecessary movement is eliminated, and steering performance is significantly improved. The bearings use pillow balls manufactured by Minebea.
● Front Lower Arm / Front Side
S136400PB-3A
2 pieces / 1 set Uses MBWT22, aluminum C-ring type
● Front Lower Arm / Rear Side
S136400PB-3B
2 pieces / 1 set Uses MBWT16, chromoly C-ring type
● Rear Trailing Arm / Front Side
S136024PB-4A
2 pieces / 1 set (Uses MBWT18, aluminum C-ring type)
● Rear Trailing Arm / Knuckle Side
S136020PB-4B
2 pieces / 1 set (Uses MBWT16, chromoly C-ring type)
● Rear Upper Arm / Front Body Side
S136020PB-5A
2 pieces / 1 set (Uses MBWT16, chromoly C-ring type)
● Rear Upper Arm / Rear Body Side
S136020PB-5B
2 pieces / 1 set (Uses MBWT16, chromoly C-ring type)
● Rear Lateral Link / Body Side
S136020PB-6A
2 pieces / 1 set (Uses MBWT16, chromoly C-ring type)
● Rear Toe Control Arm
S136020PB-7A
2 pieces / 1 set (Uses MBWT16, chromoly C-ring type)
