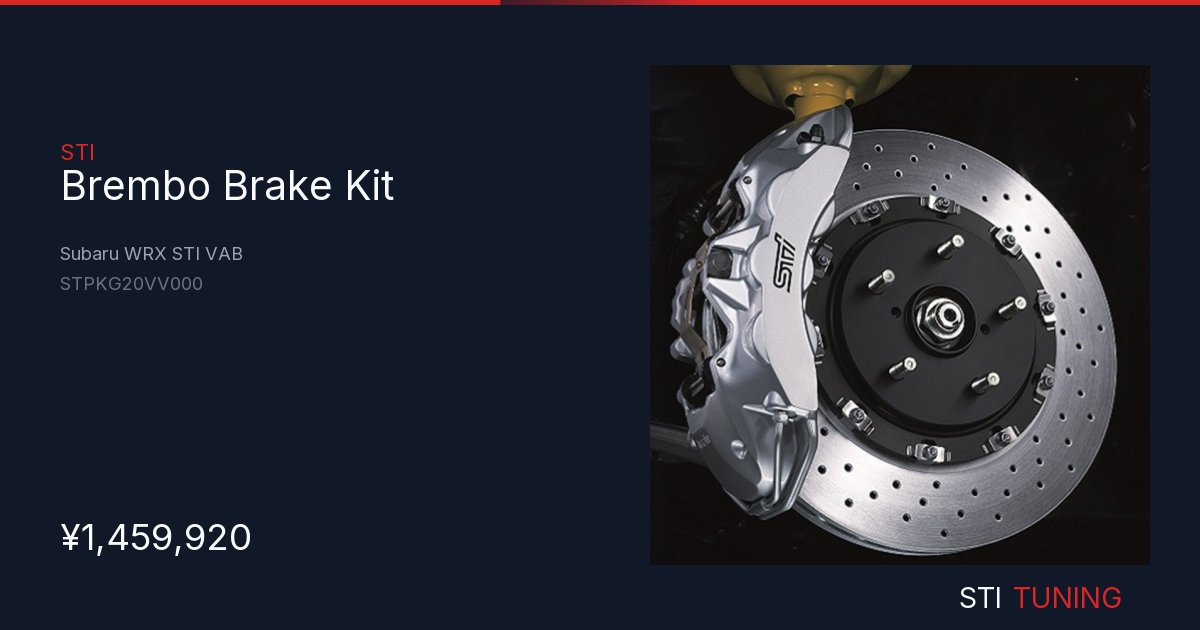

Brembo Brake Kit — Subaru WRX STI VAB
SKU: STPKG20VV000
To Order
¥1,459,920
This item is shipped from Japan on order. Delivery takes 2 to 4 weeks. Shipping cost is calculated separately.
The price shown is for the product only. Our manager will inform you of the shipping cost after placing your order.
Category:
Brake Systems
Description
Based on the popular Brembo brake kit (front 6-pot, rear 4-pot) for the WRX STI (GV/GR), this kit has been tuned and configured for the WRX STI (VA). It combines the front 6-pot and rear 4-pot monoblock brake calipers, also adopted on the STI complete car (S207), with high-heat dissipation drilled rotors and STI sports pads (front and rear) into a complete kit. It enhances fade resistance during sports driving on winding roads or circuits, achieving reliable braking performance that supports the driving performance of the WRX STI. This is a complete kit for one vehicle, including front and rear components such as calipers, rotors, pads, and front brake hoses.
【Kit Contents】
<Part Name> <Quantity> <Remarks>
1. Disc Brake Kit Front RH/LH (1 each) ※Front Brake Caliper
2. Disc Brake Kit Rear RH/LH (1 each) ※Rear Brake Caliper
3. Pin & Spring Kit Front/Rear (2 each) ※For one vehicle, front and rear
4. Brake Pad Front/Rear (1 each) ※For one vehicle, front and rear
5. Brake Disc Front/Rear (2 each) ※For one vehicle, front and rear
6. Disc Brake Cover Front RH/LH (1 each)
7. Back Plate Rear RH/LH (1 each)
8. Brake Hose Front RH/LH (1 each)
9. Brake Bracket Rear (2) ※Bracket for rear brake caliper
10. Bolt ASSY (4) ※For front brake caliper installation
11. Flange Bolt (10X38) (4) ※For rear brake bracket installation
12. Flange Bolt (10X35) (4) ※For rear brake caliper installation
13. Instruction Manual Front/Rear (1 each)
※Installation requires 8 brake hose gaskets (SUBARU genuine replacement part) 114130151, brake fluid, and brake pad grease separately.
※This brake kit is tuned for use as a set of front and rear. It cannot be used with front or rear components individually. Also, it differs from the standard Ft 6-pot caliper installed on WRX STI (VAB) D-type and later models.
※The kit is assembled after receiving your order, so it typically takes about one week from order to shipment.
※The standard wheels interfere with the brake calipers, so wheel replacement is necessary.
【STI Recommended Wheels】
<Part Number> / <Size> / <Remarks>
SG217VA000 / 18×8 1/2J +55 / ENKEI Silver Paint
SG217VA010 / 18×8 1/2J +55 / ENKEI Gunmetal Paint
SG217VA020 / 18×8 1/2J +55 / ENKEI Black Paint
ST281004S100 / 18×8 1/2J +53 / BBS Brilliant Silver Paint
ST281004S170 / 18×8 1/2J +53 / BBS Silver Paint
ST28100ZR580 / 18×8 1/2J +53 / BBS Black Paint
ST28100ZR550 / 19×8 1/2J +53 / BBS Light Silver Paint
ST28100ZR560 / 19×8 1/2J +53 / BBS Black Paint
ST28100ZR570 / 19×8 1/2J +53 / BBS Silver Paint
