To Order

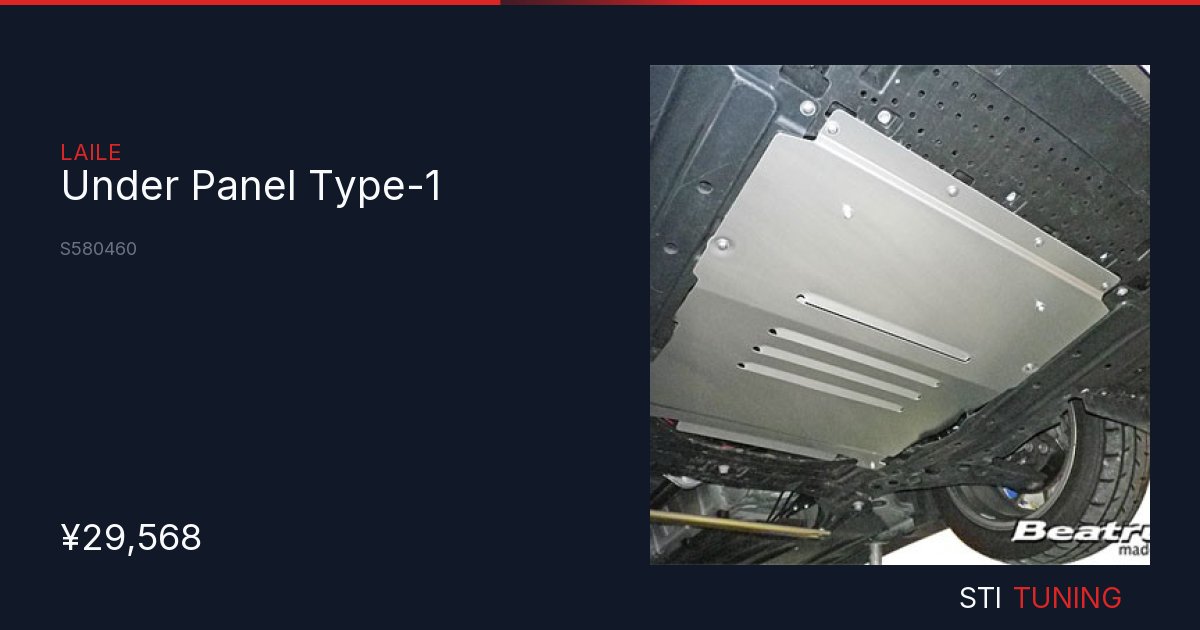

Under Panel Type-1
SKU: S580460
To Order
¥29,568
This item is shipped from Japan on order. Delivery takes 2 to 4 weeks. Shipping cost is calculated separately.
The price shown is for the product only. Our manager will inform you of the shipping cost after placing your order.
Specifications
Under Panel: 2.0mm thick, aluminum
Bracket: Aluminum
Weight: Approx. 2.3 kg
Category:
Cooling
Description
The under panel improves aerodynamic efficiency under the body during high-speed driving, generating downforce.
It also suppresses airflow entering the engine bay. By incorporating a vent, it efficiently expels heat from the engine bay, preventing engine overheating. Made from 2.0mm thick aluminum material, weight increase has been considered.
Both Type-1 (S580460) and Type-2 (S580470) can be installed on both MT and AT vehicles.
Type-1 and Type-2 have different mounting heights when installed; Type-2 mounts approximately 10-15mm lower.
Type-1 has a raised mounting position to ensure road clearance when lowering the vehicle height.
Type-2 is designed to mount at almost the same height as the stock under cover, making it easier to lower coolant and oil temperatures even on AT vehicles.
In regions with heavy snowfall, Type-2 is recommended even for MT vehicles when the purpose is to protect the under panel from snow and de-icing agents. Also, for AT vehicles where lowering the vehicle height as much as possible is desired, Type-1 can be selected. In such cases, it is recommended to monitor coolant and oil temperatures by installing additional gauges, etc.
Caution:
* Using Type-1 on an AT vehicle may result in minimal clearance between the transmission case and the under panel, potentially preventing proper expulsion of air from the engine bay and causing coolant and oil temperatures not to decrease.
* When using Type-2, to ensure a minimum ground clearance of 90mm, the vehicle height cannot be lowered as much as when using Type-1.
