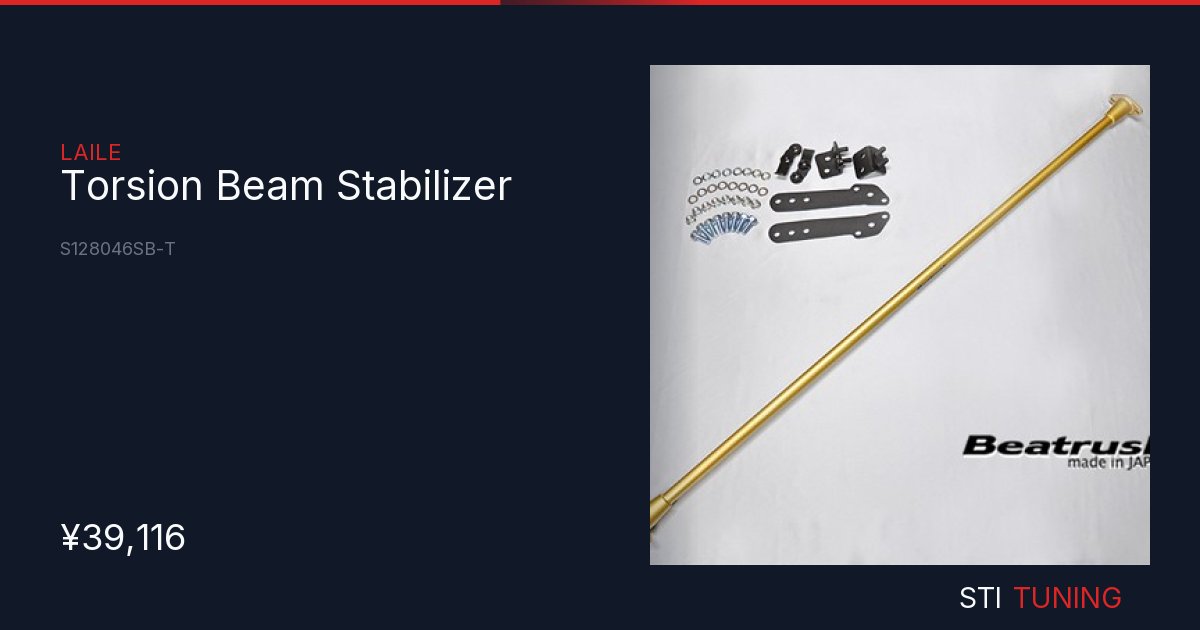

Torsion Beam Stabilizer
SKU: S128046SB-T
To Order
¥39,116
This item is shipped from Japan on order. Delivery takes 2 to 4 weeks. Shipping cost is calculated separately.
The price shown is for the product only. Our manager will inform you of the shipping cost after placing your order.
Specifications
Torsion Bar: Solid
Bracket: Steel
Category:
Suspension
Description
Increases the torsional rigidity of the torsion beam and suppresses rear roll (stabilizer effect).
It expands the range of tuning possibilities even with the vehicle's current specifications, such as when you want to suppress roll a bit more but don't want to worsen ride comfort by increasing the rear spring rate, or during hard suspension sports driving where the choice of spring rates is limited due to the specially shaped rear springs, making fine-tuning difficult.
During cornering, centrifugal force pulls the vehicle body outward, causing it to lean (roll). When the body rolls, load shifts to the outside, putting the outside tire into a bump stroke (lifted state).
A stabilizer connects the left and right suspensions, so when one tire lifts, it exerts a force to lift the opposite tire as well. Therefore, during cornering, it works to lift the inside tire, suppressing body roll.
For the same shape and material, a thicker torsion bar diameter increases torsional rigidity, resulting in a greater force to make the opposite tire follow.
We also offer the torsion bar alone for separate purchase (sold separately), allowing for fine-tuning adjustments according to changes in tire type or road conditions.
【 Reference 】
Bump stroke amount of the opposite tire when one tire is given a 60mm bump stroke from 1G condition
(Measured with springs removed)
● Stock condition: 24mm
● With φ19mm installed: 42mm (Stock ratio +18mm)
● With φ16mm installed: 35mm (Stock ratio +11mm)
● With φ13mm installed: 30mm (Stock ratio +6mm)
■ Torsion Bar for Torsion Beam Stabilizer ⇒
